34 35 003 Replacing a brake pad sensor (rear)

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).

If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

Necessary preliminary work:

Remove rear right WHEEL

Removal:

Slacken nut (1).

Pull wheel arch trim (2) gently to one side.

Disengage cable from holders (3).

G05778557

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

G05778558

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable from brackets.

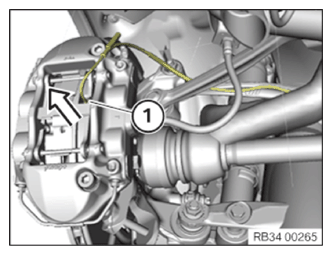

Detach brake pad wear sensor (1) in direction of arrow from brake pad.

G13692446

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install brake pad wear sensor (1) in the brake pad in direction of arrow.

Install cable in brackets.

NOTE: Make sure holder and brake pad wear sensor (1) are correctly fitted in brake caliper.

G13692447

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1).

NOTE: Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

G05778558

Courtesy of BMW OF NORTH AMERICA, INC.

Mount wheel arch cover (2).

Attach cable in brackets (3).

Position nut (1) and tighten.

G05778557

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Mounting the wheel.
