51 72 010 Replacing edge protection for left or right rear door
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove REAR DOOR SILL COVER STRIP (INNER) IMPORTANT: Follow NOTES FOR FITTING SEALING .

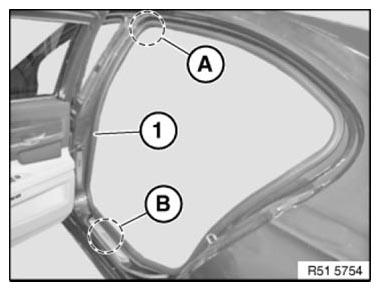

Detach edge protection (1).
Installation note:
Install edge protection (1) starting in area "A".
When installed, the location of joint of edge protection (1) must be in area "B".
Pull off mounting cord starting in area "B".
