51 37 000 Removing and installing/replacing complete rear left or right power window regulator
Necessary preliminary work:
- Release DOOR WINDOW AT REAR
NOTE:
Disengage, but do not remove, the door window and secure in the door window frame.

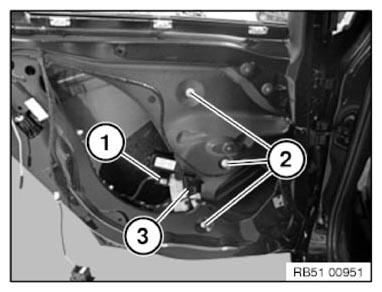

Unlock plug connection (1) and disconnect.
Release nuts (2) and feed out power window regulator (3).
Tightening torque: 51 35 2AZ .
Replacement
Swap over FLAT MOTOR FOR POWER WINDOW REGULATOR .
