67 62 020 Removing and installing/replacing flat motor for rear left or right power windows

Preliminary work needed:

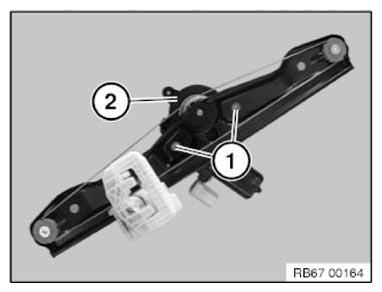

Release screw connections (1).

Remove flat motor (2) from power windows.

Cable must not come loose from power window.

Installation note:

Simultaneously tighten both screw connections (1).

The shaft of the flat motor (2) must be pulled into the holder of the power windows under slight tension.

Tightening torque: 51 35 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

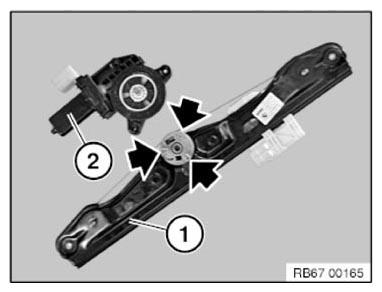

Flat motor (2) must engage exactly at the marked points of the power windows (1).

IMPORTANT: Ensure that the flat motor (2) is assembled without tension.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate crush guard.

Read and comply with NOTES ON INITIALIZATION of power electric windows.
