54 12 136 Removing and installing/replacing sliding head liner for glass slide/tilt sunroof panel
Special tools required:
- 00 9 460
Necessary preliminary tasks:
Lever out linkage of left and right water channels (1) from gate (2).
Installation note:
Linkage must audibly engage in gate.

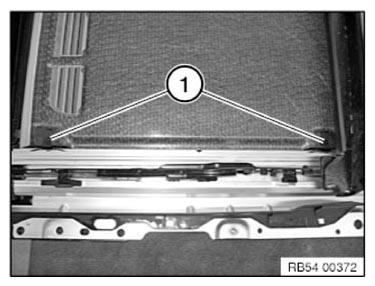

Release left and right screws (1).
Installation note:
Replace micro-encapsulated screws (1).
Tighten down screws (1) with special tool 00 9 460.
Tightening torque: 54 12 04AZ .

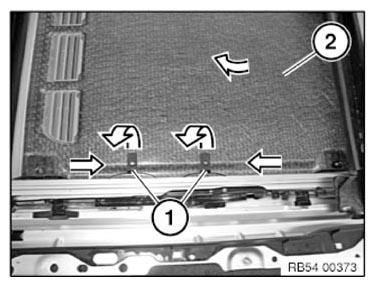

Slide spring glider (1) inwards and remove in direction of arrow.
Remove headlining frame (2) upwards in direction of arrow.
Installation note:
Make sure spring glider is installed in correct position.
Run a function check.
If headlining frame has stiff movement, apply a light coat of grease RHF1 (manufactured by Fuchs) to guide duct.
