61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Follow instructions on Intelligent Battery Sensor (IBS). Refer to 61 12... NOTES ON INTELLIGENT BATTERY SENSOR (IBS) .

IMPORTANT: Do not under any circumstances use force to pull or lever off safety battery terminal.

Necessary preliminary tasks:

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Release screw (1) and remove holder (2).

Tightening torque: 61 21 5AZ .

Slide battery fully towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure battery is correctly fitted.

Open cover (1) and release nut (2) below it.

Tightening torque: 61 21 1AZ .

IMPORTANT: Do not under any circumstances pull or lever off safety battery terminal (3) by force.

Remove safety battery terminal (3) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock of plug connection (1) in direction of arrow with a suitable tool.

Remove plug connection (1) from safety battery terminal (2) in direction of arrow.

Pull off plug connection (3) from safety battery terminal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

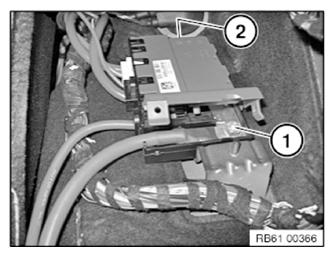

Open cover on power distribution box (2) and release nut (1) underneath.

Tightening torque: 61 21 4AZ .

Remove positive battery cable from power distribution box (2).

NOTE: Risk of short circuits!

Make sure positive battery cable is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and release nut (2) below it.

Tightening torque: 61 21 4AZ .

Remove complete positive battery cable from vehicle.

NOTE: Risk of short circuits!

Make sure positive battery cable is correctly fitted.
