51 75 UNDERSHIELD
>>
51 75... Removing and installing/replacing left or right tank cover
51 75... Removing and installing/replacing left or right tank cover

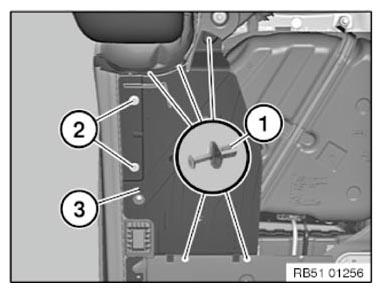

Release expanding rivets (1).
Unfasten screws (2).
Tightening torque:
51 75 1AZ
.
Remove tank (3).
