65 50 030 Removing and installing/replacing TV module
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
NOTE:
Follow notes for HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD
- Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT
Unscrew nut (1) and bolts (2).
Take off holder (3).

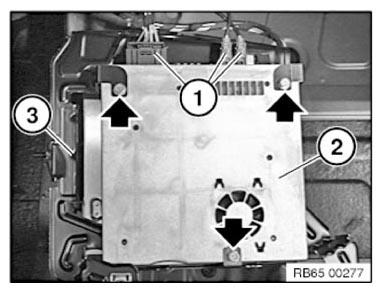

Unlock plug connections (1) and disconnect.
Release screws at marked points.
Remove TV module (2) from holder (3).
