61 14 040 Removing and installing/replacing rear positive battery cable distributor
WARNING:
Observe safety information for handling vehicle battery. Refer to 61 12... NOTES REGARDING THE BATTERY ELECTRONICS (LITHIUM ION BATTERY) and 61 20... NOTES REGARDING THE LITHIUM ION BATTERY .
Necessary preliminary tasks:

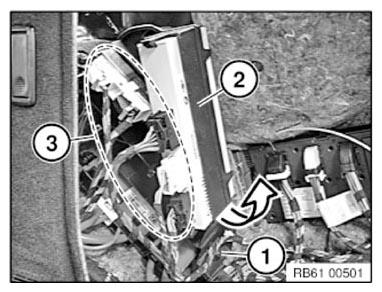

If the control unit holder (2) is not installed, continue with the next operation .
Release the nut (1) and swivel the control unit holder (2) in the direction of arrow.
Tightening torque: 61 35 8AZ .
If necessary, unlock associated plug connections (3) and disconnect.
NOTE:
Ensure that the control unit holder (2) is correctly seated.
Ensure the correct locking of the plug connections (3).
Ensure the correct locking of the plug connections (3).
NOTE:

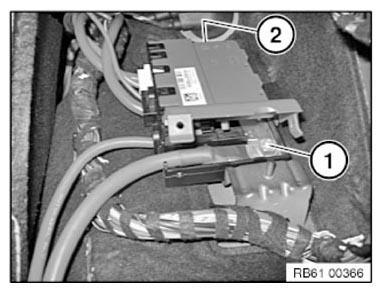

Latches (1) on cover (2) must not be missing or damaged.
Make sure plug connections are correctly locked.
Make sure plug connections are correctly locked.

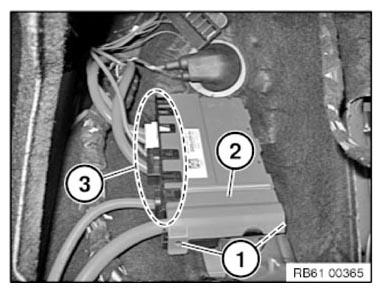

Release nut (1) and disconnect positive wire.
Tightening torque: 61 21 4AZ .
Release nut (2) and remove power distribution box (3).
Tightening torque: 61 21 2AZ .
