63 11 731 Replacing left daytime driving lights LED modules

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

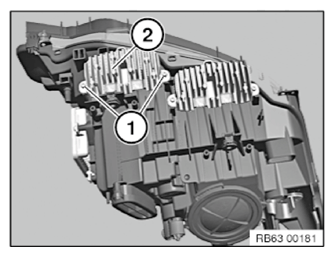

Release screws (1).

Tightening torque: 63 12 3AZ .

Pull LED module (2) out of headlight towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

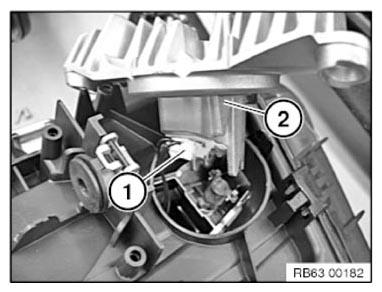

Disconnect plug connection (1).

Remove LED module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

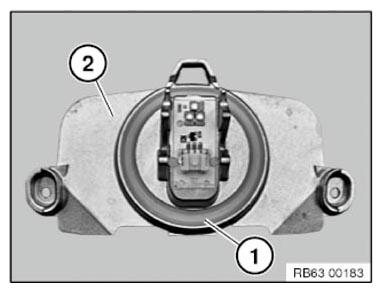

Gasket (1) on LED module (2) must not be damaged.

Always replace LED modules (2) as a pair.
