65 13 050 Removing and installing/replacing speaker (tweeter in mirror triangle)
Necessary preliminary tasks:
- Remove COVER ON DOOR HANDLE
- Partially remove FRONT DOOR TRIM PANEL
- Detach COVER ON DOOR WINDOW FRAME in front area.
Feed out resistor (2) with cable.
Remove foam wedge (1).

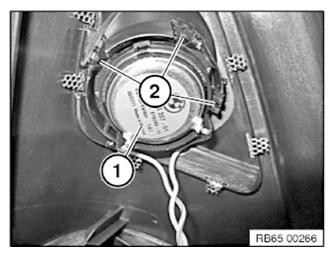

Unclip speakers (1) from latch mechanisms (2).
Remove associated plug connection and remove speaker (1).
Installation note:
Latch mechanisms (2) must not be damaged.
