Installing the vibration damper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .

It is imperative to use the special tool when fitting the vibration damper.

NOTE: TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.

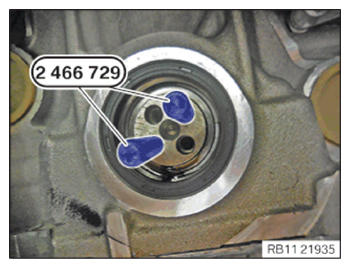

Screw in the special tool 2 466 729 and hand-tighten it on the crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the vibration damper (1) on the special tool 2 466 729 .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

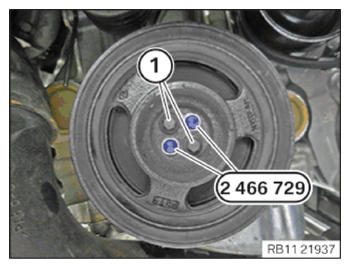

Hand-tighten the bolts (1) .
Guide the special tool 2 466 729 out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the bolts (arrows) on the vibration damper (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Vibration damper with belt pulley to crankshaft
M10x65 Replace screws. Tighten screws crosswise.	1. Joining torque	40 Nm
	2. Angle of rotation	60°
	3. Angle of rotation	60°

Release screws, and feed out and remove special tool 0 493 587 (11 8 180) .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten transmission screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Transmission to engine
M8	tightening torque	19 Nm

Feed in protective cap (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DRIVE BELT FOR THE ALTERNATOR .
Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT RIGHT WHEEL .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to CHECKING ENGINE OIL LEVEL .
