Removing all intermediate levers
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY
- Refer to REMOVING SUSPENSION CROSS-BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
- Refer to IF INSTALLED: PARTIALLY REMOVING THE ENGINE VENTILATION LINE .
- Refer to REMOVING IGNITION COILS .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR BULKHEAD .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING TANK VENT VALVE .
- Refer to REMOVING THE INTAKE PLENUM .
- Refer to REMOVING BOTH ACTUATORS .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE RAIL AND THE HIGH PRESSURE PUMP .
- Refer to REMOVING INJECTORS .
- Refer to REMOVING HIGH PRESSURE PUMP .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to REMOVING THE CYLINDER HEAD COVER .
- Refer to REMOVING TORSION SPRINGS .
- Refer to REMOVING ALL GATES .

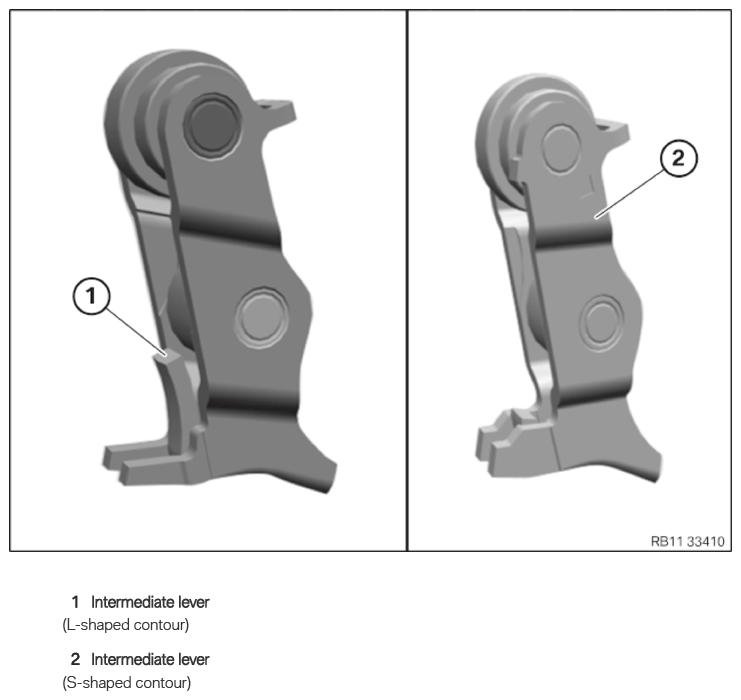

Intermediate lever
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Remove the intermediate lever (1) and arrange it in the special tool 0 495 105 (11 4 480) in order.
