Replacing front axle support (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 251

Necessary preliminary work:

Refer to REMOVING FRONT AXLE COMPLETE .

Removal:

Unfasten screws (1).

Remove heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from anti-roll bar.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove anti-roll bar (1) with retaining bracket from front axle.

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Undo screw (1) of retaining clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove steering gear (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1).

If installed: Remove crash lever (2) or nut plates.

Remove deformation element adapter (3) from front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for right ride height sensor:

Release screw (1).

Release ride height sensor holder (2) from front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1).

Release screw (2).

Remove wishbone on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Only with gasoline engines:

Loosen the clips and cable clamp (2).

Remove purge air line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Only with gasoline engines:

Secure the purge air line (1) to the new front axle support using the clips and the cable clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Place new front axle support on special tool 31 5 251 and secure with tensioning strap.

Align wishbone. Replace screw (2).

Parts: Screw

Screw in screw (2).

Do not yet tighten screw (2)!

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 31 12 3AZ .

Tighten screw (2).

Tightening torque 31 12 2AZ .

Only for right ride height sensor:

Align ride height sensor holder (2) to front axle support.

Tighten screw (1).

Tightening torque 37 14 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

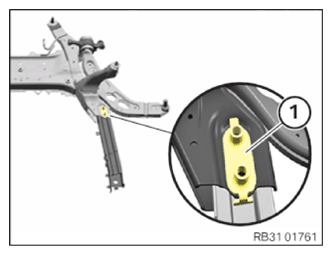

If installed: Replace the nut plate (1) on the left and right.

Parts: Nut plates

Position nut plate (1) on the left and right on the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

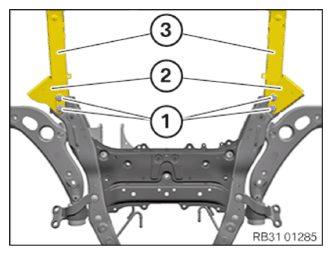

Align deformation element adapter (3) to front axle support.

If installed: Position crash lever (2).

Tighten down screws (1).

Tightening torque 31 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

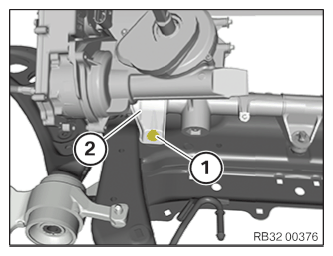

CAUTION: Firewall seal (1) of the electromechanical steering gear (EPS) must always be replaced!

Remove gasket (1).

Clean surface on steering gear.

Replace gasket (1).

Parts: Seal

Stick on new gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The bore holes for the steering gear connection in the front axle support are made without thread.
It is mandatory to use new self-tapping screws!

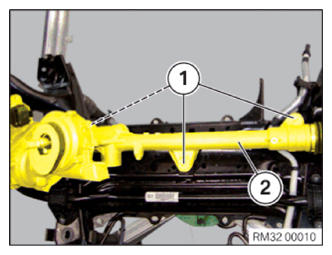

Position the steering gear (2).

Replace screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Screws

Tighten screws (1).

Tightening torque 32 00 1AZ .

If installed: Tighten screw (1) of retaining clamp.

Tightening torque 32 00 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Place anti-roll bar (1) with retaining bracket on front axle and align.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).

Parts: Screws

Tighten screws (1) on anti-roll bar.

Tightening torque 31 35 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position heat shield (2).

Replace screws (1).

Parts: Screws

Tighten down screws (1).

Tightening torque 32 00 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING FRONT AXLE .
Refer to CARRY OUT WHEEL ALIGNMENT PROCEDURE .
