Remove transmission oil cooler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE HOOD SEAL AT THE SIDE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE SEAL FOR THE FRONT CENTER HOOD .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to PARTIALLY REMOVING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
- Refer to PARTIALLY REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING IMPACT ABSORBER .
- Refer to REMOVING THE FRONT TOP BUMPER SUPPORT .
- Refer to REMOVING THE AIR DUCT TO THE RADIATOR .
- Refer to REMOVING A/C CONDENSER .
- Refer to REMOVING FRONT CROSS CONNECTION .
Precondition
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

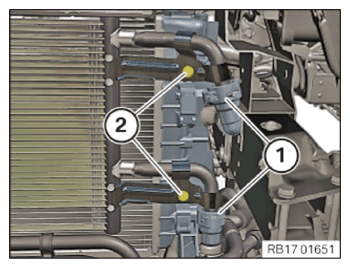

- Disconnect the transmission oil lines (1) .
- Collect and dispose of emerging fluids.
- Loosen screws (2)
.

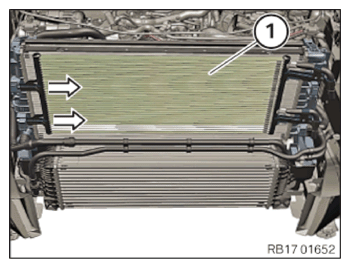

- Feed out the transmission oil cooler (1) in arrow direction and remove.
