Installing The Front Side Panel On The Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Install side panel with a second person helping.
Screw in all screws on the side panel until it is just about still possible to move the side panel.

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00...
Gap dimensions for body

Adjust gap dimensions.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Side panel to holder for side panel
Screw M6
	Tightening torque	8 Nm

G15171705

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Side panel to holder for side panel
Screw M6
	Tightening torque	8 Nm

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Front bumper panel to fender
Screw TS5X35
	Tightening torque	3 Nm

G15171704

Courtesy of BMW OF NORTH AMERICA, INC.

Open the front door.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Side panel to holder for side panel
Screw M6
	Tightening torque	8 Nm

G15171703

Courtesy of BMW OF NORTH AMERICA, INC.

Close front door.

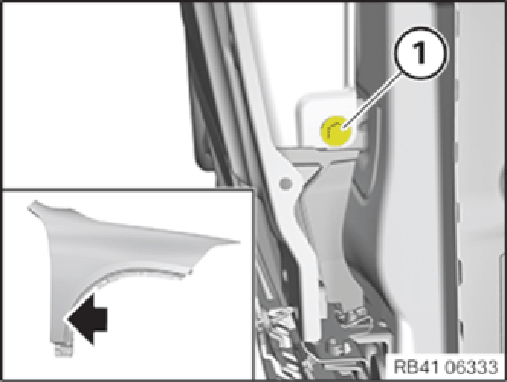

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Side panel to holder for side panel
Screw M6
	Tightening torque	8 Nm

G15171712

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Side panel to holder for side panel
Screw M6
	Tightening torque	8 Nm

G15171701

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the wiring harness (2) including clip (1) at the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the side sill trim panel (2) including clip (1) on the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove protective film (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove protective film (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING SIDE PANEL SEALING .
Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT WHEEL ARCH TRIM .
Refer to MOUNTING THE WHEEL .
Refer to RESETTING THE TIRE PRESSURE MONITOR .
Refer to INSTALLING THE GUTTER STRIP, RIGHT ON THE WINDSCREEN .
