Installing the front right wheel arch cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front wheel arch cover

Courtesy of BMW OF NORTH AMERICA, INC.

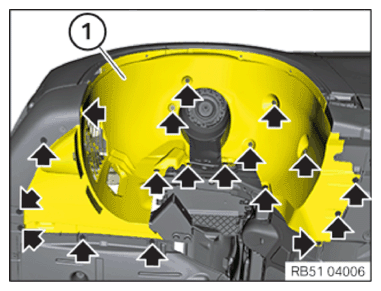

Guide the wheel arch cover (1) in.

Tighten all bolts and nuts (arrows).

Tightening torques

Wheel arch cover to body
Plastic nut	Tightening torque	2.6 Nm
Screw	Tightening torque	2.6 Nm

Tightening torques

Wheel arch cover to body
Screw	Tightening torque	2.5 Nm

Tightening torques

Wheel arch cover to body
Plastic nut	Tightening torque	3 Nm
