Installing the engine bridge

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING SUSPENSION CROSS-BRACE .
Refer to REMOVING REAR HOOD SEAL .
Refer to REMOVING FRONT WINDSHIELD PANEL COVER .
Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
Refer to REMOVING THE ACOUSTIC COVER .

Prepared engine bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

Front compartment lid is in service position.

CAUTION: Components connected to the engine joint or cross member .
Injury hazard!

Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
Attach the component to correctly mounted engine joints or cross members only.
Only lift the component, do not shift it forwards, backwards or in transverse direction.

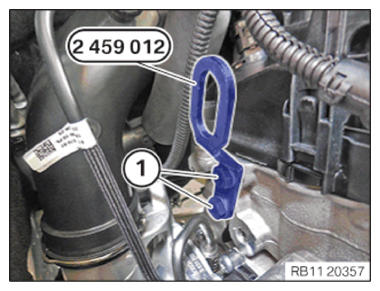

Guide in and position special tool 2 459 012 on cylinder head.

Tighten the screws (1) of special tool 2 459 012 .

TIGHTENING TORQUE SPECIFICATIONS

Special tool to cylinder head
M8	Tightening torque	21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1) of the left hood catch.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) of the right hood catch.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Heavy component .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
Set entire special tool 0 496 852 (00 6 100) on the vehicle and position with the help of an auxiliary person.

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 0 496 437 (00 6 052) to the rear mounting point (1) at the right .

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 0 496 437 (00 6 052) to the rear mounting point (1) at the left .

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 2 365 070 to the front mounting point (1) at the right .

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 2 365 070 to the front mounting point (1) at the left .

Courtesy of BMW OF NORTH AMERICA, INC.

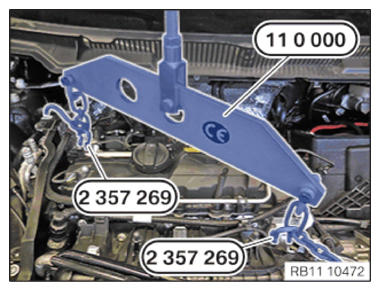

Position special tool 0 490 561 (11 0 000) above the engine.
Attach special tools 2 357 269 to the mounting lugs of the engine.

Courtesy of BMW OF NORTH AMERICA, INC.

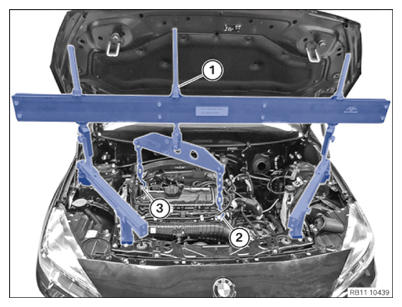

Tighten side screws (2) and (3).
Slightly pretension the spindle screw (1) of the engine support beams.
Tighten down all adjusting screws, knurled screws and nuts on cross member 0 496 852 (00 6 100) and on special tool 0 495 904 (00 0 490) .
