Bring front compartment lid in the service position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Engine compartment lid is open.
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.

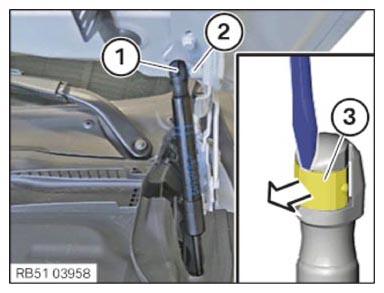

- Lift clamp (3) slightly using a screwdriver, in the direction of the arrow.
- Lift off ball socket (1) from ball pin (2) .
- Repeat the operation on the other side of vehicle.NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person. - Remove the hood support and open the hood further.

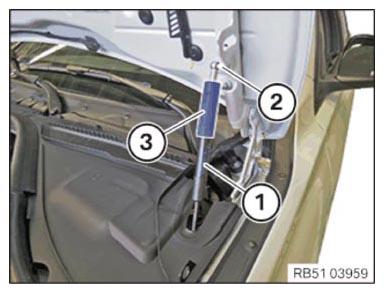

- Push special tool 2 353 020 (3) over gas pressure spring (1) .
- Place special tool on the ball pin (2) and engage using force.
- Repeat the operation on the other side of vehicle.
