Installing the window washer pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

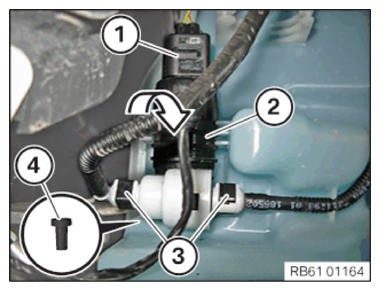

Replace the sealing ring with the strainer (4) .
Parts: Sealing ring with strainer
Coat sealing ring (4) with lubricant.
Insert the window washer pump (2) into the washer fluid reservoir for the window washer system.
Connect the hose pipes (3) to the windshield washer pump (2) .
Connect connector (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH COVER .
Refer to MOUNTING THE WHEEL .
