Installing washer fluid reservoir

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

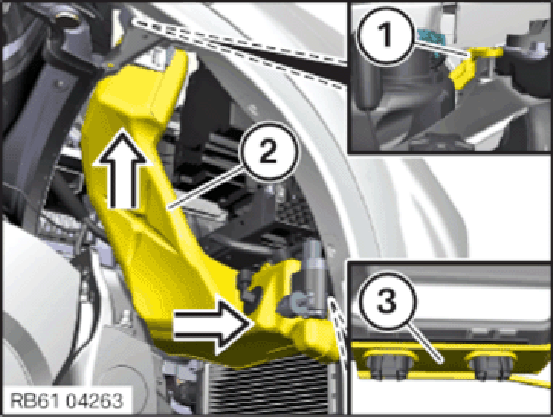

Feed holder of washer fluid reservoir (1) into the threaded bolt.
Clip in washer fluid hose (2) to holder (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

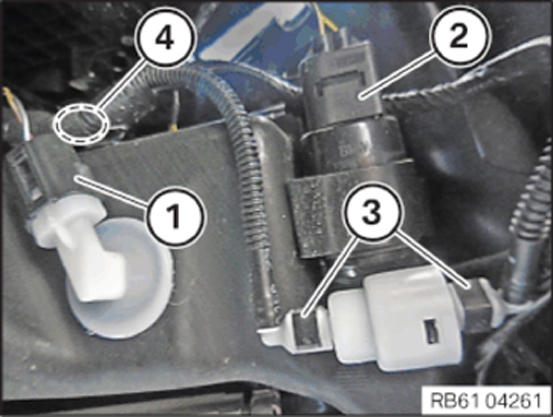

Connect and lock the hose pipes (3) on the windscreen washer pump.
Connect the connector (2) to the window washer pump.
Clip in the hose pipe (4) at the washer fluid reservoir for the window washer system.
Connect the connector (1) to the washer fluid level switch.

Courtesy of BMW OF NORTH AMERICA, INC.

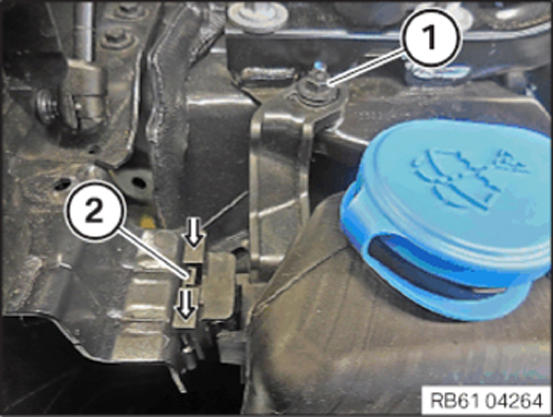

Install and lock connecting piece (2) .
Ensure that the lock engages audibly.

Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Washer fluid reservoir to body
Nut M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (3) .

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Cover on body
Hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the expanding rivet (1) .

Follow-up work

Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH COVER .
Refer to INSTALLING ALL WHEELS .
