Installing the Body Domain Controller (BDC)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

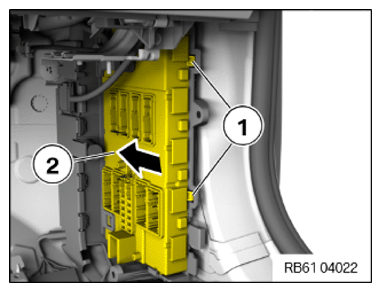

- Feed the Body Domain Controller (BDC) (2) into the holder from the side.
- Engage the Body Domain Controller (BDC) (2) at the latch mechanisms (1) of the holder.
- Connect all connectors (1) and lock.

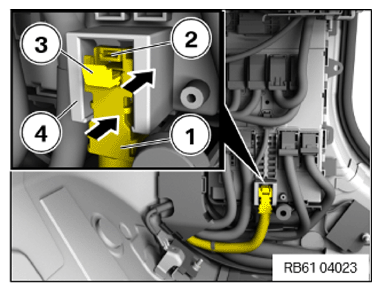

- Attach the connector of the positive battery cable (1) to the Body Domain Controller (BDC) control unit (4) in direction of arrow.
- Engage latch mechanism (2) to the connector of the positive battery cable (1).
- Close lock (3) in direction of arrow.

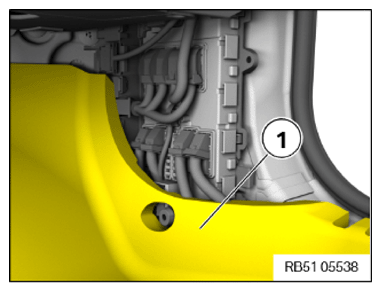

- Fold down carpet (1) and make sure it is positioned correctly.
Follow-up work
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to ENCODE/PROGRAM CONTROL UNIT (S) .
