Installing the gearshift lug
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

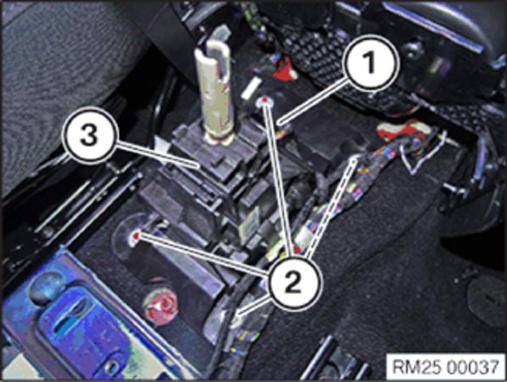

- Install the gearshift lug (3) and tighten the screws (2) .
- Connect the connector (1)
with the gearshift lug (3)
.
Follow-up work
- Refer to INSTALLING CENTER CONSOLE, COMPLETE .
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE DECORATIVE TRIM TO THE CENTER CONSOLE .
- Refer to INSTALLING THE SELECTOR LEVER .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING SIDE TRIM PANEL FOR THE LEFT AND RIGHT CENTER CONSOLE .
- Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
