Install rubber window seal of rear door window glass
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

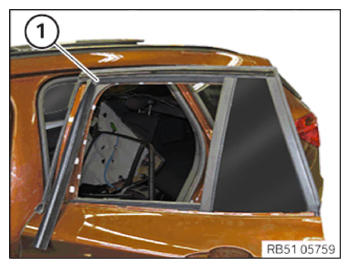

- Insert rubber window seal (1) into the guide rails.
- Attach the rubber window seal (1) to the door frame.

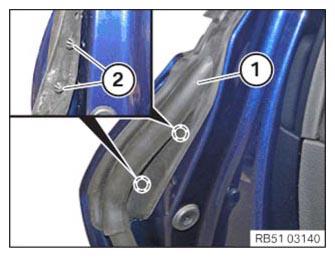

- Engage rubber window seal (1) into the mounting (2).
- Make sure that the rubber window seal (1) rests correctly against the door frame.
Follow-up work
- Refer to INSTALLING THE OUTER WINDOW FRAME COVER OF THE REAR DOOR .
- Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
- Refer to INSTALLING THE WINDOW FRAME COVER FOR THE REAR DOOR .
- Refer to INSTALLING WEATHER STRIP ON INNER REAR DOOR .
- Refer to INSTALLING REAR DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
