Installing weather strip on inner rear door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

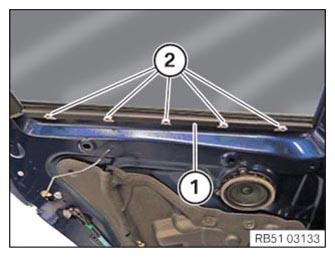

- Coat window recess finisher strip (1) prior to installation with an approved lubricant.
- If necessary, remove clamps (2)
from window recess finisher strip (1)
and mount on the door.
Damaged or missing clamps (2) must be replaced.
- Attach window recess finisher strip (1)
to the door and engage in clamps (2)
.
Follow-up work
- Refer to INSTALLING REAR DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
