Install the tailgate button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Check

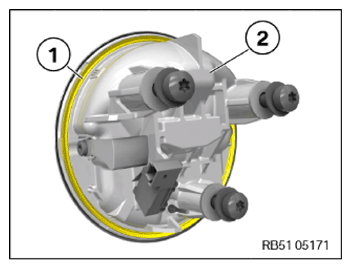

Check the seal (1) on the tailgate button (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1) is damaged.

Measure
Replace the tailgate button (2).

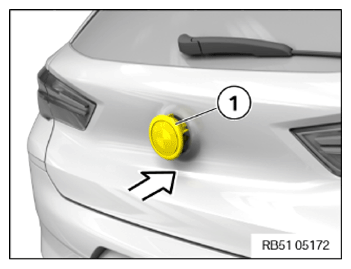

Insert the tailgate button (1) in the rear trim from the outside in.
The badge must be aligned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

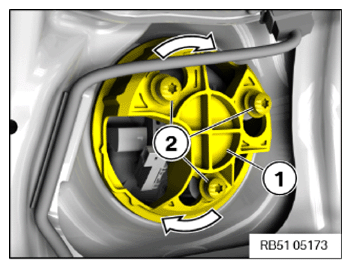

Attach the retaining ring (1) from the inside and turn it in the direction of the arrow to the stop.

Tighten the screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Tailgate button
Screw with spring washer and washer M6x20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TAILGATE TRIM PANEL .
Refer to MOUNTING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME ON THE SIDE .
Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
