Remove the wiring harness section for the Valvetronic servomotor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to REMOVING REAR HOOD SEAL .
- Refer to REMOVING FRONT WINDSHIELD PANEL COVER .
- Refer to REMOVING SUSPENSION CROSS-BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .

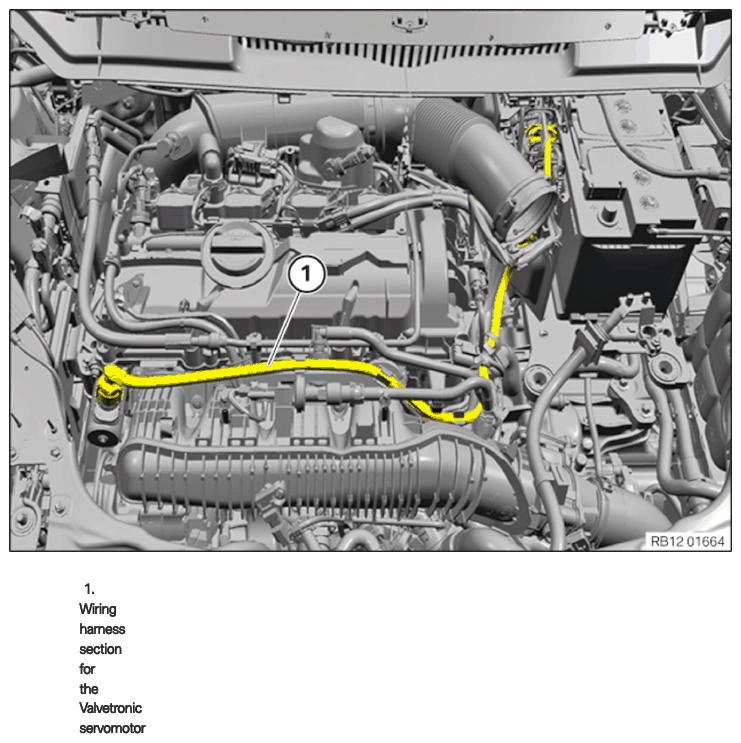

Wiring harness section for the Valvetronic servomotor
- Wiring harness section for the Valvetronic servomotor
Precondition
Disconnect the battery.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
- Do not pull on wires when disconnecting connectors and plug connections I
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
- Loosen screws (1).
- Guide out the tension strut (2) upwards and remove.
- Release the battery positive terminal (1).
- Guide out the battery positive terminal (1) and place to the side.
- Guide the positive battery cable (2) out of the holder (3) and lay to one side.
- Loosen screw (1).
- Unlock the cover panel (2) and feed out of the guides (3) in the direction of the arrow and remove.
- Guide out the connector (1) from the E-box (2) in the direction of the arrow and remove.
- Unlock and loosen connector (1).
- Unlock and remove the connector (1) in the direction of the arrow.
- Feed out connector (1) and place to one side.
- Thread out positive battery cable (1) and set it aside.
- Unlock lock (2).
- Feed out the wiring harness section (3) for the injectors and ignition coils in the direction of the arrow and set aside.

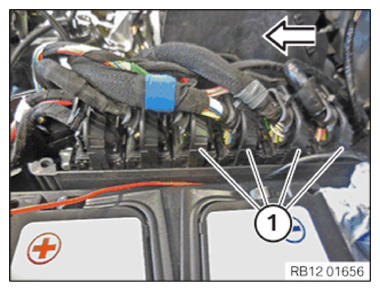

- Unlock the locks (1).
- Feed out the wiring harness section (2) for the Valvetronic servomotor in the direction of the arrow and set aside.
- Unlock and loosen connector (1).
- Loosen the wiring harness section (2) for the Valvetronic servomotor from the holder (3).
- Guide out the wiring harness section (2) for the Valvetronic servomotor and remove.
