Installing sound insulation on front door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on the sound insulation must be strictly observed for these repair instructions.
For additional information see: NOTES FOR BONDING SOUND INSULATION (SI), DOORS .
Notes on the sound insulation must be strictly observed for these repair instructions.
For additional information see: NOTES FOR BONDING SOUND INSULATION (SI), DOORS .
Check
- Check the sound insulation for damage.
Result
» The sound insulation is damaged.
Measure
- Replace the sound insulation.

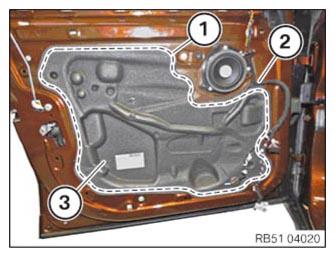

- Route the butyl rope with 4 mm (sourcing reference BMW Group Parts) along the current layout of the butyl rope (1).
- Heat the butyl rope (1) with a hot air blower.
- Slide the cable (2) slightly to the side.

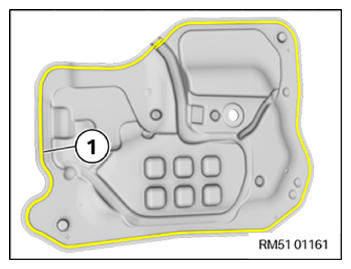

- Press the sound insulation (3) hard along the mark (1) on the inner door panel.
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
