Install front door trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.

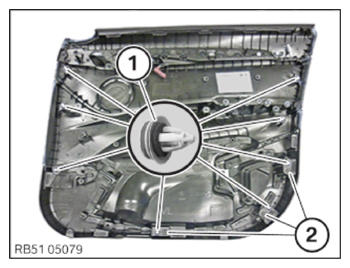

- Check the clips (1) and the stop pad (2) for damages, and replace if necessary.
The clips (1) and the stop pads (2) must not be damaged or missing.
- Install door trim panel and connect all the connectors.
- Attach the Bowden cable (1) on the door lock (2).
- Engage the door trim panel (1) in the clamps (3) at the top.
- Position the door trim panel (1) correctly and clip it into the clips (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Door trim panel to door Screw TS5x20 tightening torque 2.5 Nm - If fitted: Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Door trim panel to door Screw TS5x20 tightening torque 2.5 Nm - Mount cover.
Follow-up work
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
