Install front brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

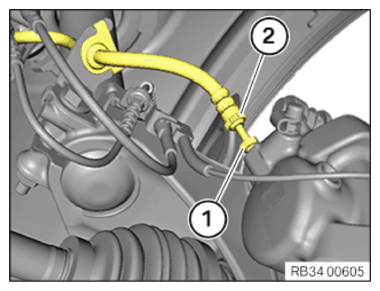

Fit and tighten brake hose (1) on brake caliper.

If necessary, grip at knurling (2) .

TIGHTENING TORQUE SPECIFICATIONS

Brake hose to brake caliper, front
	Tightening torque	24 Nm

Make sure that the brake hose is not twisted and does not rest against the components fixed to the body.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to REMOVING THE BRAKE PEDAL TENSIONER .
Refer to GREASE THE BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER USING BRAKE PAD PASTE (17 INCH BRAKE) .
Refer to INSTALLING THE FRONT BRAKE PADS .
Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
Refer to INSTALLING THE FRONT LEFT OR RIGHT WHEEL .
Refer to COMMISSIONING/BEDDING IN (BRAKE) NEW BRAKE PADS AND BRAKE DISCS .
Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
Refer to FLUSHING AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT .
Refer to DISCONNECTING THE BLEEDER UNIT FOR BRAKE FLUID .
