Install the rail pressure sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

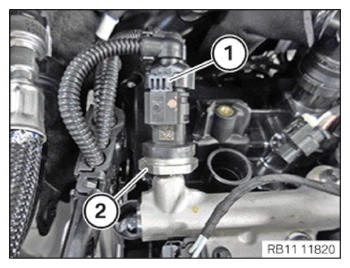

- Insert and install the rail pressure sensor (2) .
- Tighten the rail pressure sensor (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Rail pressure sensor on the rail | ||
|---|---|---|
| Sensor | tightening torque | 35 Nm |
- Connect connectors (1) and lock.
- Make sure the connector (1) engages audibly.
Follow-up work
- Refer to INSTALLING THE IGNITION COIL OF THE FIRST CYLINDER .
- Refer to IF INSTALLED: PARTIALLY INSTALLING ENGINE VENTILATION LINE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
