Suction the air conditioning
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The engine is switched off.
CAUTION:
Refrigerant circuit under high pressure
.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: NOTE FOR HANDLING R134A REFRIGERANT , or INSTRUCTIONS FOR HANDLING R1234YF REFRIGERANT , and NOTES REGARDING REFRIGERANT (R134A, R1234YF) AND REFRIGERANT OIL .
NOTE:
TECHNICAL INFORMATION
If the A/C service station for the R1234yf refrigerant identifies contaminated refrigerant in the refrigerant circuit of the vehicle before the suction process, a special procedure to draw off and dispose of this refrigerant must be followed.
If the A/C service station for the R1234yf refrigerant identifies contaminated refrigerant in the refrigerant circuit of the vehicle before the suction process, a special procedure to draw off and dispose of this refrigerant must be followed.
- Let the engine run for a few minutes at a low engine speed (800-1200 RPM) and with the heating and air conditioning system switched on.
- Stop engine.
- Remove the sealing caps from the refrigerant filler necks.

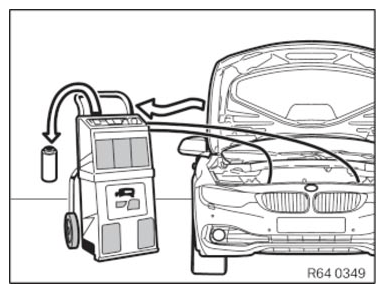

- Connect the high pressure line of the A/C service station with the vehicle's high-pressure connection (red).
- Connect the low-pressure line of the A/C service station with the vehicle's low-pressure connection (blue).
- Start the suction process on the A/C service station.
- During suction process, allow the blower of the heating and air-conditioning unit to run at middle blower speed.
- Record the amount of evacuated refrigerant and coolant oil level after having completed suction process.
- Keep the sheet with the recorded quantities as the values are once again required when filling.
- Disconnect the high pressure line and low pressure line.
- Drain the high pressure line and low pressure line.
- Close the sealing cap of the coolant filler neck.
- Correctly dispose of the drained refrigerant oil.
