Removing the front seats on the left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the left and right side.
Removing the front strap fitting

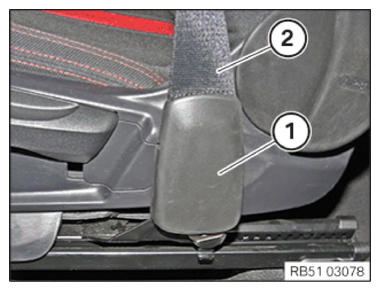

- Slide the cover (1)
on the seat belt (2)
upward.
- Turn the strap fitting (2) toward the rear.

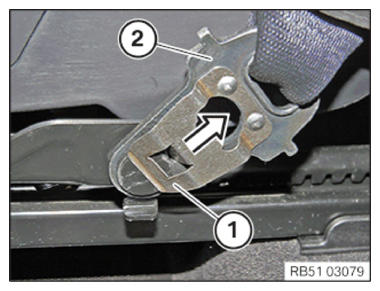

- Carefully pull the lock plate (1) outwards in the direction of arrow and simultaneously feed out the strap fitting (2) to the front.
- Pull strap fitting (2)
outward to remove.

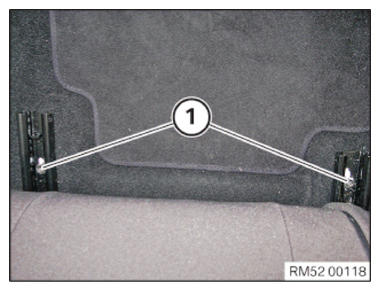

- Fully move the seat backwards.
- Loosen screws (1)
.

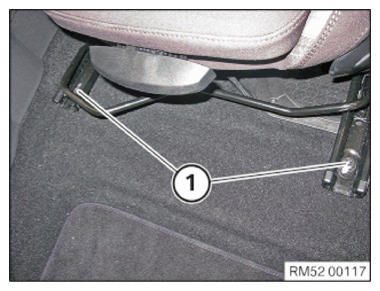

- Fully move the seat forwards.
- Loosen screws (1)
.

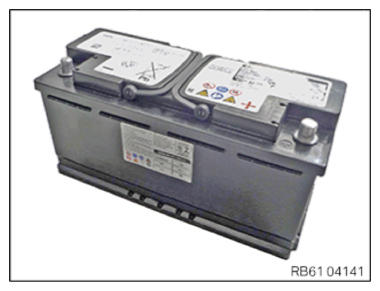

Disconnect all battery negative leads
- See DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY
.NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.

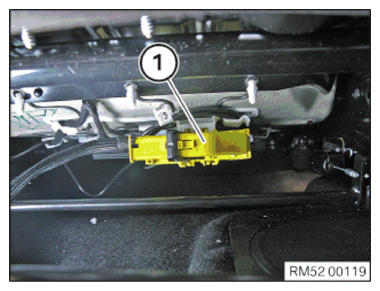

- Place the front seat fully to the rear and disconnect the plug connector (1)
.NOTE: RISK OF DAMAGE
Heavy component .
Heavy components can lead to injury or damage .- Remove and install heavy components with the aid of another person/other persons.
- Remove the front seat with the assistance of an support person.
