Removing the catalytic converter (engine removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
If installed: Removing the differential pressure sensor with the pressure line

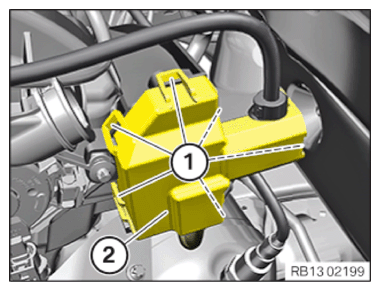

- Unlock the detents (1) carefully.
- Guide out and remove the cover (2) .

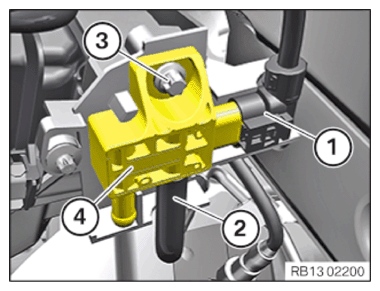

- Unlock plug connection (1) and disconnect.
- Disconnect the pressure hose (2) .
- Loosen screw (3).
- Feed out differential pressure sensor (4) and remove.

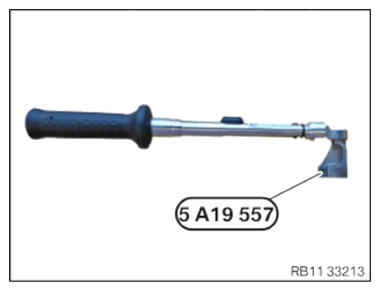

- Have the special tool 5 A19 557
ready.
- Version A

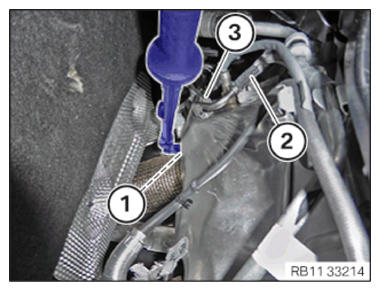

Release the union nut (1) with special tool 5 A19 557 .
Feed the pressure hose (2) out of the holder (3) and remove.

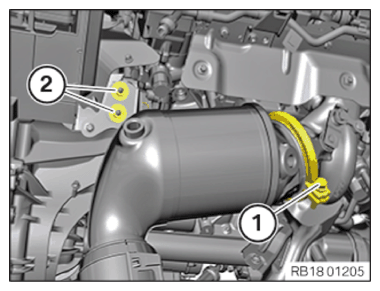

- Loosen V-band clamp (1) .
- Loosen the nuts (2)
.

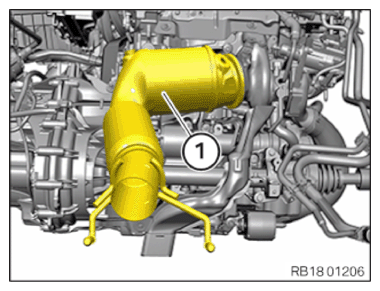

- Remove the catalytic converter (1)
.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
If installed: Removing the differential pressure sensor with the pressure line
- Unlock the detents (1) carefully.
- Guide out and remove the cover (2)
.
- Unlock plug connection (1) and disconnect.
- Disconnect the pressure hose (2) .
- Loosen screw (3) .
- Feed out differential pressure sensor (4)
and remove.
- Have the special tool 5 A19 557
ready.
- Version A
Release the union nut (1) with special tool 5 A19 557 .
Feed the pressure hose (2) out of the holder (3) and remove.
- Loosen V-band clamp (1) .
- Loosen the nuts (2)
.
- Remove the catalytic converter (1)
.
