Removing intermediate shaft with support tube
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- If air duct is installed: Loosen screws (1)
.
- Remove air duct
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- F40/F44 B47

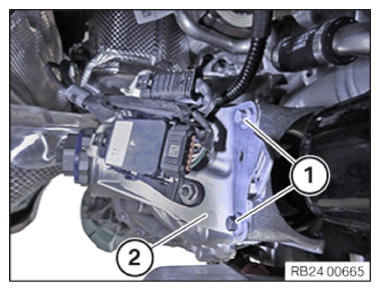

- Loosen screws (1)
.
- Remove holder (2)
and set aside,
 Courtesy of BMW OF NORTH AMERICA, INC.
|

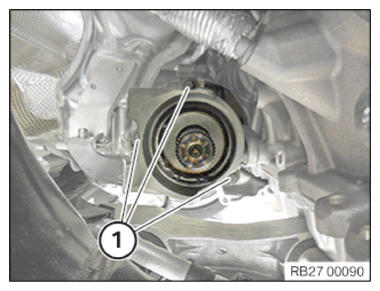

- Loosen screws (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

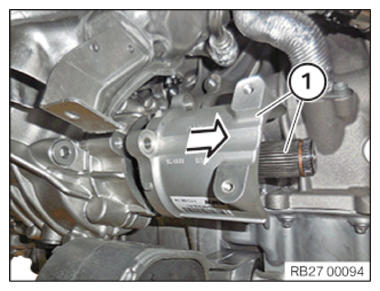

- Pull out intermediate shaft from the transfer box with support tube (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
