Removing heat shield at upper exhaust turbocharger

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

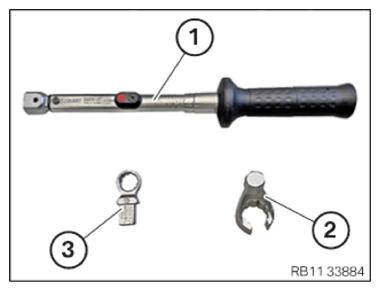

Keep the following tool ready:
- Torque wrench (1)
- Special tool 5A19557 (2)
- Ring wrench insert (3)
Courtesy of BMW OF NORTH AMERICA, INC.

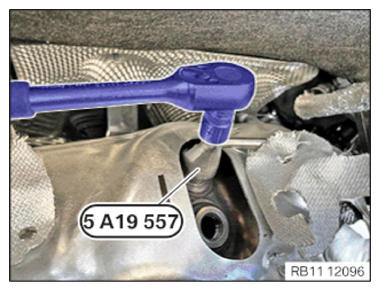

Release union nut (1) from the pressure line using special tool 5 A19 557 .

Courtesy of BMW OF NORTH AMERICA, INC.

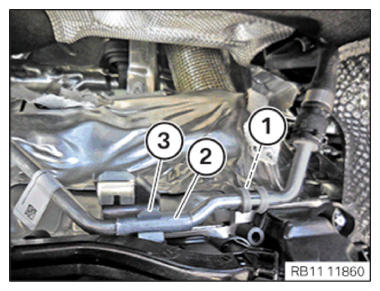

Loosen screw (1) .
Feed out coolant line (2) from the holder (3) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

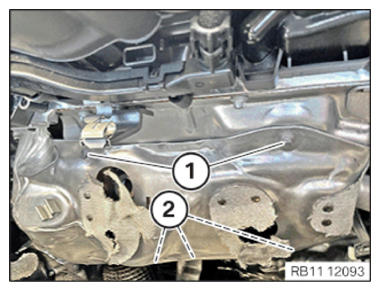

Loosen screws (1) .
Release screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

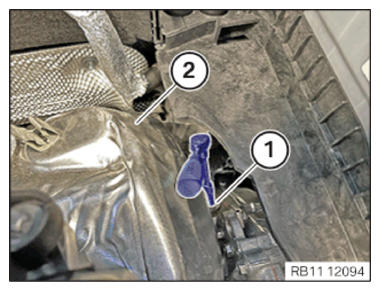

Loosen screw (1) .
Feed out and remove the heat shield (2) .
