Removing bottom right C-pillar trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the bottom C-pillar trim panel
- Fold up the carpet as shown.

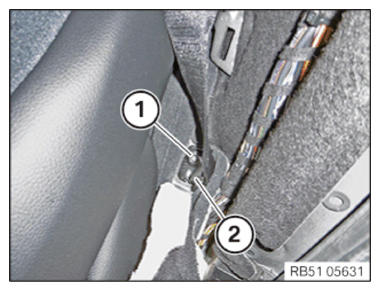

- Loosen screw (1) .
- Remove end fitting (2)
.

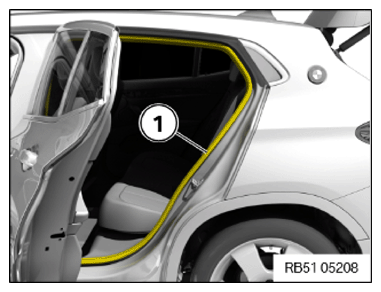

- Release the edge protection (1)
in area of the bottom C-pillar trim panel.

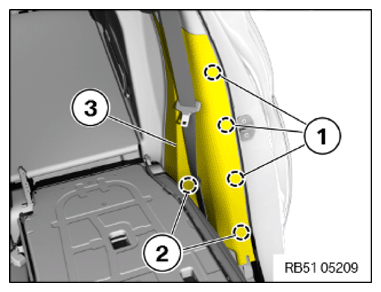

- Clip in the C-pillar trim panel (3) on the bottom with the clamps (1) and the clips (2) .
- Detach end fitting and remove the bottom C-pillar trim panel (3)
.
