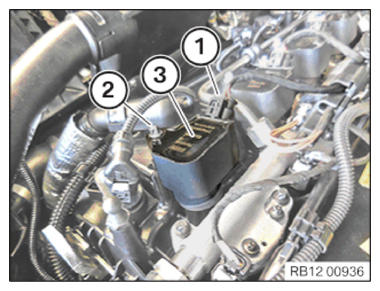

Remove the ignition coil of the first cylinder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
Damage to the ignition coil .
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil .
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).
