Remove the 12 V power socket mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

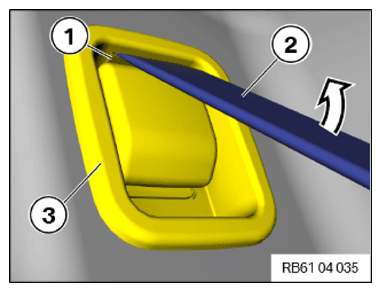

- Push the locking mechanism upwards (1)
with a suitable tool (2)
in the direction of the arrow and unlock.
- Remove the rear 12-V socket mount (3)
from the luggage compartment wheel arch trim panel.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

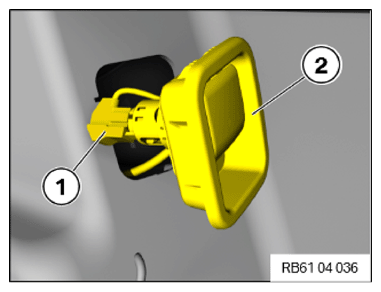

- Unlatch the plug-in connection (1)
, disconnect and remove the 12 V socket mount (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
