Remove rear window
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Remove rear window
- Loosen screws (1) .
- Unlock and disconnect the plug connections (2)
and unclip from the cable clips.
- Secure cable (1)
to rear window with adhesive tape.
- Tape off body in area of piercing point with fabric adhesive tape.

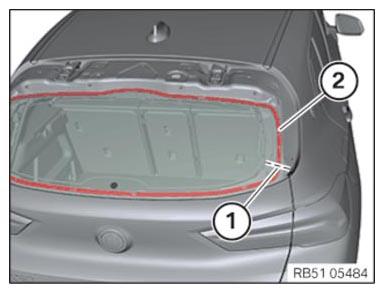

- Slide the thread along the line (1) through the adhesive bead (2) from the inside.
- Cut out the rear window with the spider.
