Remove cross connection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

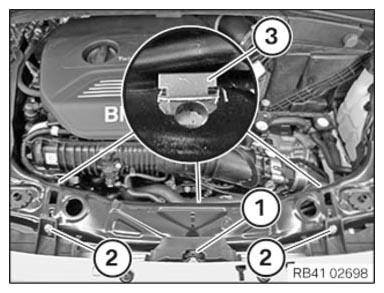

- Loosen screws (1)
and (2)
.
- Detach clamps (3)
for hood lock Bowden cable.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Lever out expanding rivet (1)
.
- Loosen screws (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Lever out expanding rivet (1)
.
- Loosen the screws (2)
and remove the cross connection (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
