Partially installing right output shaft

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

With automatic transmission only:

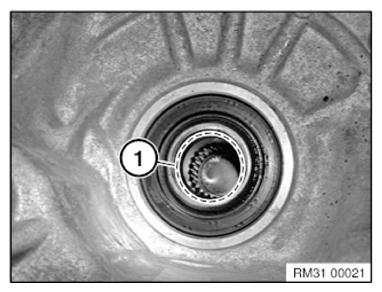

Lever out the O-ring (1) .
Replace O-ring (1) .
Parts: O-ring
Insert the new O-ring (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

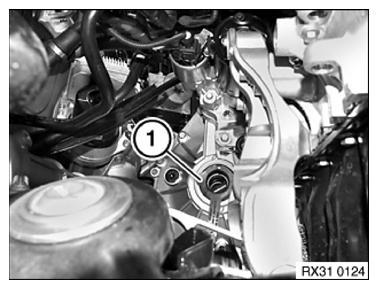

Insert the installation protection ring (1) into the radial shaft seal.
Make sure the tool fits over the lip of the radial shaft seal to avoid damaging the sealing ring when inserting the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

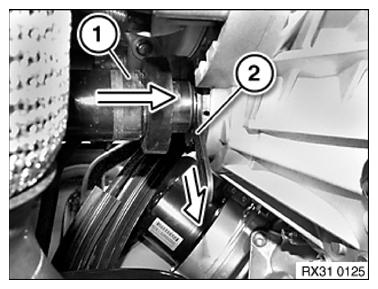

Insert the output shaft (1) In the transmission.
Pull on the handle to remove the installation protection ring (2) and dispose of it.
Slide the output shaft (1) up to the stop in the transmission.
Check for secure seat by levering.

Courtesy of BMW OF NORTH AMERICA, INC.

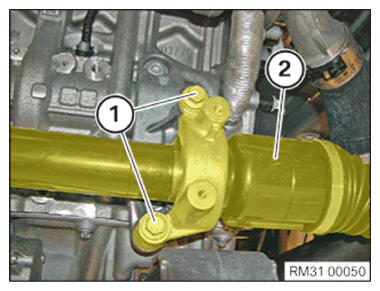

Tighten down screws (1) .

Tightening torques

Output shaft bearing to engine block
M10	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
