Installing the system battery partially
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

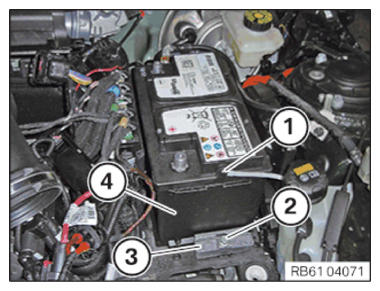

- Install system battery (4) .
- Correctly position the holder (3) .
- Tighten down screw (2)
.Tightening torques
Battery terminal rail to battery tray M8 Tightening torque 19 Nm - Join and clip in the vent hose (1)
.
Check the vent holes of the battery
WARNING: Exhaust .
Injury hazard! Danger of explosion!- Assign the vent holes correctly.
- Route the vent hose correctly.
NOTE: TECHNICAL INFORMATION

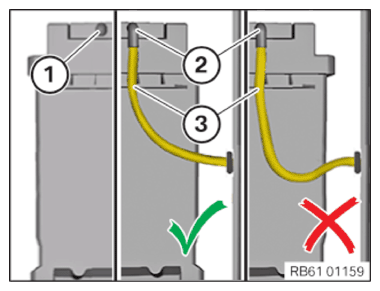

The battery has two ventilation openings positioned opposite to each other:
One ventilation opening (1) must be closed correctly with a dummy plug.
The vent hose (3) must be correctly connected and routed at the other ventilation opening (2).Check
- Check if the ventilation opening (1)
is correctly closed with a dummy plug.
Result
» No dummy plug.
Measure
- Close the vent hole (1)
correctly with a dummy plug.
Check
- Check whether the vent hose (3)
is correctly connected to the ventilation opening (2)
.
Result
» The vent hose (3) is not correctly connected.
Measure
- Connect the vent hose (3)
correctly to the ventilation opening (2)
.
Check
- Check if the vent hose (3)
is laid with a slope towards the outside (no siphon formation)
.
Result
» The vent hose (3) is not routed correctly as shown on the right side.
Measure
- Route the vent hose (3) correctly as shown in the center.
