Installing the side trim panel for the right center console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

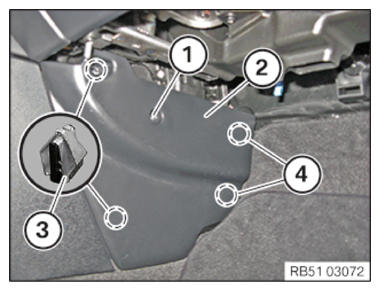

Install the side trim panel for the center console (2) and feed into the guides (4).
Engage the side trim panel for the center console (2) on the retaining clips (3).

Tighten down screw (1).

Tightening torques

Trim/side trim panel to center console
Oval-head screw	Tightening torque	1.8 Nm
