Installing the seat cover for the front seat (Sport)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

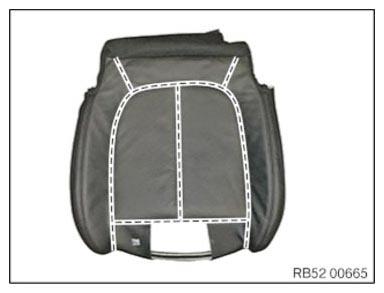

- Place the seat cover on the cushion.
- Secure all trim wires with clamps.
- Replace the clamps (2)
.
Parts: Clamps
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Clasp trim wire (3)
of cushion (1)
and trim wire (4)
of seat cover with clamp (2)
and bend clamp (2)
.
1 Upholstery 2 Clamp 3 Trim wire in cushion 4 Trim wire in seat cover 5 Seat cover
