Installing the mirror glass

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Position mirror glass (2).
Connect all connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

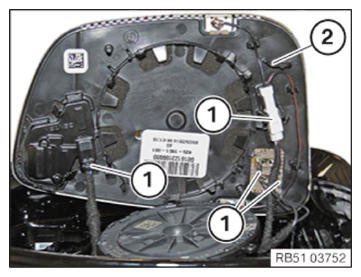

Check the snap-in lugs (1) for damage and presence; replace the mirror glass (2) if necessary.
Position the mirror glass (2) with the snap-in lugs (1) flush on the exterior mirror adjustment drive and clip it in.
Make sure the snap-in lugs (2) are engaged correctly.
Check whether the exterior mirror adjustment drive is functioning correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
