Installing the left and right tank covers

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

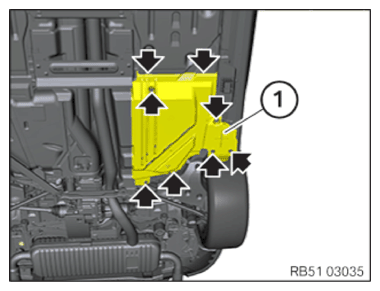

Installing tank cover

Install tank cover (1) .

Tighten screws (arrows).

Tightening torques

Underbody panelling on body
Screw not metric	Tightening torque	3 Nm
Screw M6	Tightening torque	8.8 Nm
Nut	Tightening torque	2.5 Nm
