Installing the engine block on the assembly jig

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy component .
Heavy components can lead to injury or damage .

Remove and install heavy components with the aid of another person/other persons.

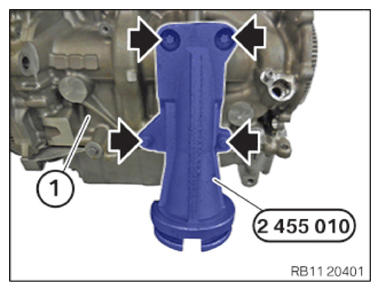

Position special tool 2 455 010 on engine block (1) .
Position the standard screws (arrows).

Tighten standard bolts (arrows).

Tightening torques

Special tool 2 455 010 to crankcase
M10x30	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

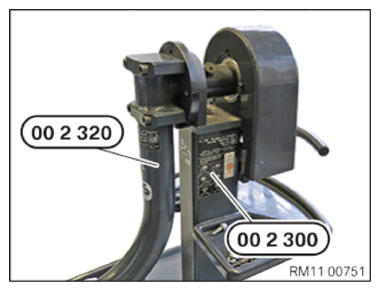

Position the assembly jig 0 495 187 (00 2 300) with the special tool 0 495 196 (00 2 320) .

Courtesy of BMW OF NORTH AMERICA, INC.

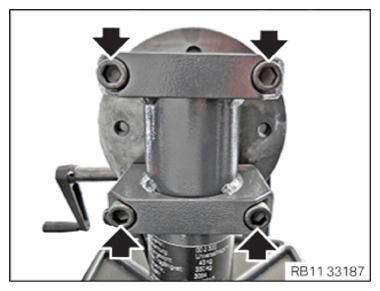

Tighten screws (arrows).

Tightening torques

Special tool 00 2 320 to special tool 00 2 300
M14X95	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

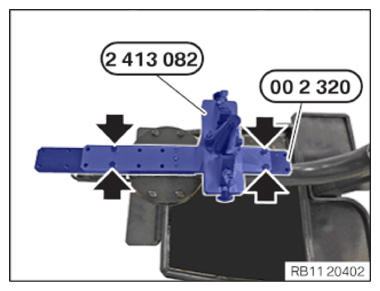

Screw the special tool 2 413 082 to the 0 495 196 (00 2 320) special tool .

Tighten screws (arrows).

Tightening torques

Special tool 2 413 082 to special tool 00 2 320
M12x65	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

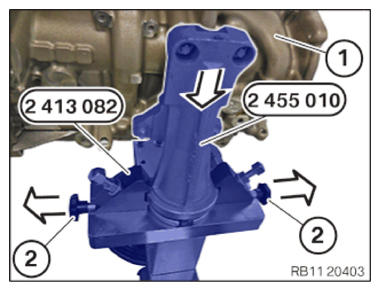

Release the holder (2) in the arrow direction.
Position engine block (1) on special tool 2 413 082 in the arrow direction using special tool 2 455 010 .

Courtesy of BMW OF NORTH AMERICA, INC.

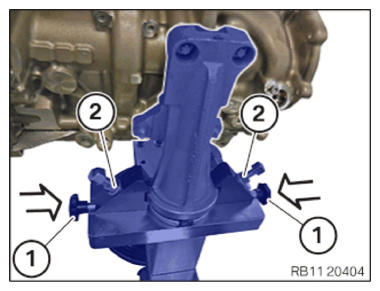

Lock the holder (1) In the arrow direction.
Tighten nuts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
