Installing the catalytic converter (engine removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

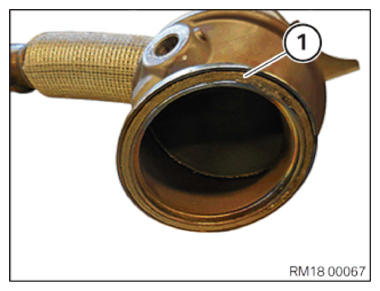

- Replace seal (1)
on catalytic converter.
Parts: Seal

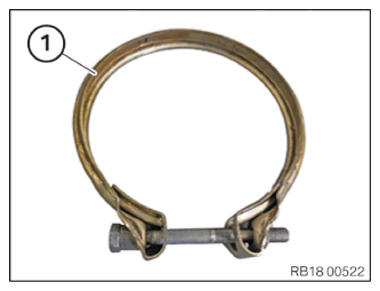

- V-band (1)
clamp.
Parts: V-band clamp

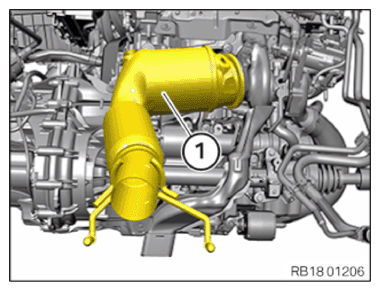

- Position catalytic converter (1)
.

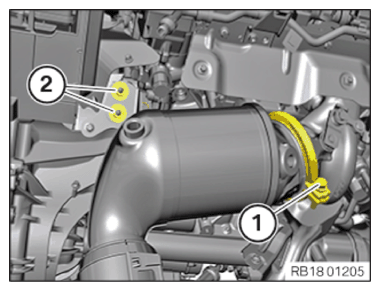

- Tighten the V-clip (1)
.Tightening torques
V-ribbon clip of catalytic converter to exhaust turbocharger V-ribbon clip Replace V-ribbon clip. tightening torque 13 Nm - Tighten the nuts (2)
.Tightening torques
Catalytic converter to holder M8 Replace nuts. tightening torque 19 Nm If installed: Installing the differential pressure sensor with the pressure line

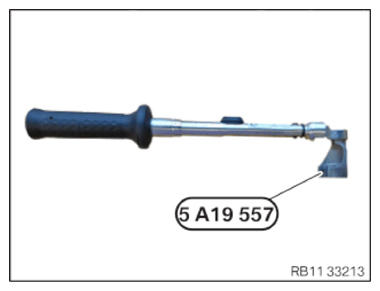

- Keep the special tool 5 A19 557
ready.
- Version A

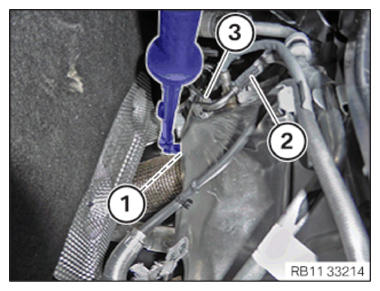

Feed in and install the pressure line (2) in the holder (3) .
Tighten the union nut (1) with the special tool 5 A19 557 .

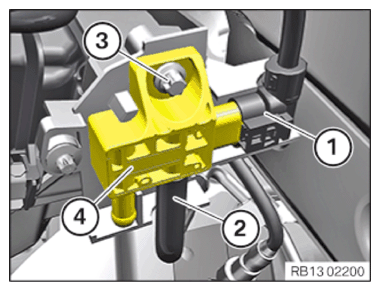

- Guide in and install differential pressure sensor (4) .
- Tighten down screw (3)
.Tightening torques
Differential pressure sensor to holder screw Tightening torque 4 Nm - Replace pressure hose (2)
Parts: Pressure hose
- Connect pressure hose (2) to differential pressure sensor (4) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

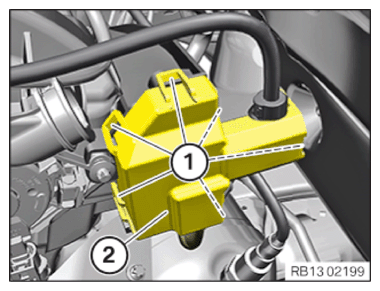

- Guide in and install cover (2) .
- Lock the detents (1)
.
The detents (1) must engage audibly.
- Replace seal (1)
on catalytic converter.
Parts: Seal
- V-Band (1)
clamp.
Parts: V-band clamp
- Position catalytic converter (1)
.
- Tighten the V-clip (1)
.Tightening torques
V-ribbon clip of catalytic converter to exhaust turbocharger V-ribbon clip Replace V-ribbon clip. tightening torque 13 Nm - Tighten the nuts (2)
.Tightening torques
Catalytic converter to holder M8 Replace nuts. tightening torque 19 Nm If installed: Installing the differential pressure sensor with the pressure line
- Keep the special tool 5 A19 557 ready.
- Version A
Feed in and install the pressure line (2) in the holder (3) .
Tighten the union nut (1) with the special tool 5 A19 557 .
- Guide in and install differential pressure sensor (4) .
- Tighten down screw (3)
.Tightening torques
Differential pressure sensor to holder screw Tightening torque 4 Nm - Replace pressure hose (2)
Parts: Pressure hose
- Connect pressure hose (2) to differential pressure sensor (4) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Guide in and install cover (2) .
- Lock the detents (1)
.
The detents (1) must engage audibly.
