Installing holder with rubber mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

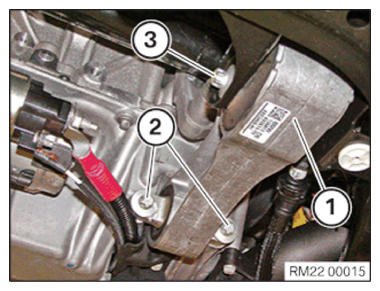

- Install holder (1)
with rubber mount.
- Tighten down screw (3)
.
Tightening torques
| Holder with rubber mount to front axle support |
| M12 |
tightening torque |
100 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Tighten down screws (2)
.
Tightening torques
| Holder with rubber mount to oil sump |
| M12 |
tightening torque |
100 Nm |
